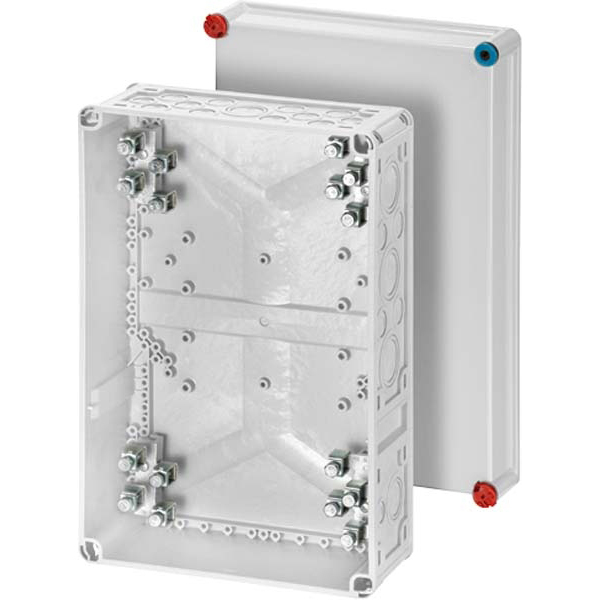

Junction box Hensel 70mm²

SKU: 3390494 | EAN: 4012591653080

✓ Shape: Rectangular

✓ Equipped with: Screw clamp

✓ Mounting method: Wall/ceiling mounting

✓ For tube diameter: Other

✓ Degree of protection (IP): IP65

✓ Max. conductor cross-section: 70 mm²

✓ Number of entries: 0

✓ Color: Gray

✓ Rear input: no

✓ Length: 450 mm

✓ Width: 300 mm

✓ Depth: 170 mm

✓ Threadable: no

✓ Enclosure pass-through type: Breakout port

✓ Material: Plastic

✓ Transparent lid: no

✓ Halogen-free: yes

✓ Surface protection: Untreated

✓ Lid design: Other

✓ Lid Mounting: Screwed

✓ Can be used with casting resin: no

✓ Casting resin included: no

✓ Sealable: yes

✓ Nominal insulation voltage Ui: 690 V

✓ Function retention: Without

✓ With shield: no

✓ Weatherproof: no

✓ Operating temperature: -25...40 °C

✓ Explosion-proof version: no

✓ For explosion-proof (ex) zone with gas: Without

✓ For explosion-proof (ex) zone with dust: Without

Cebeo HENSEL

770.12 € 770.12 €
