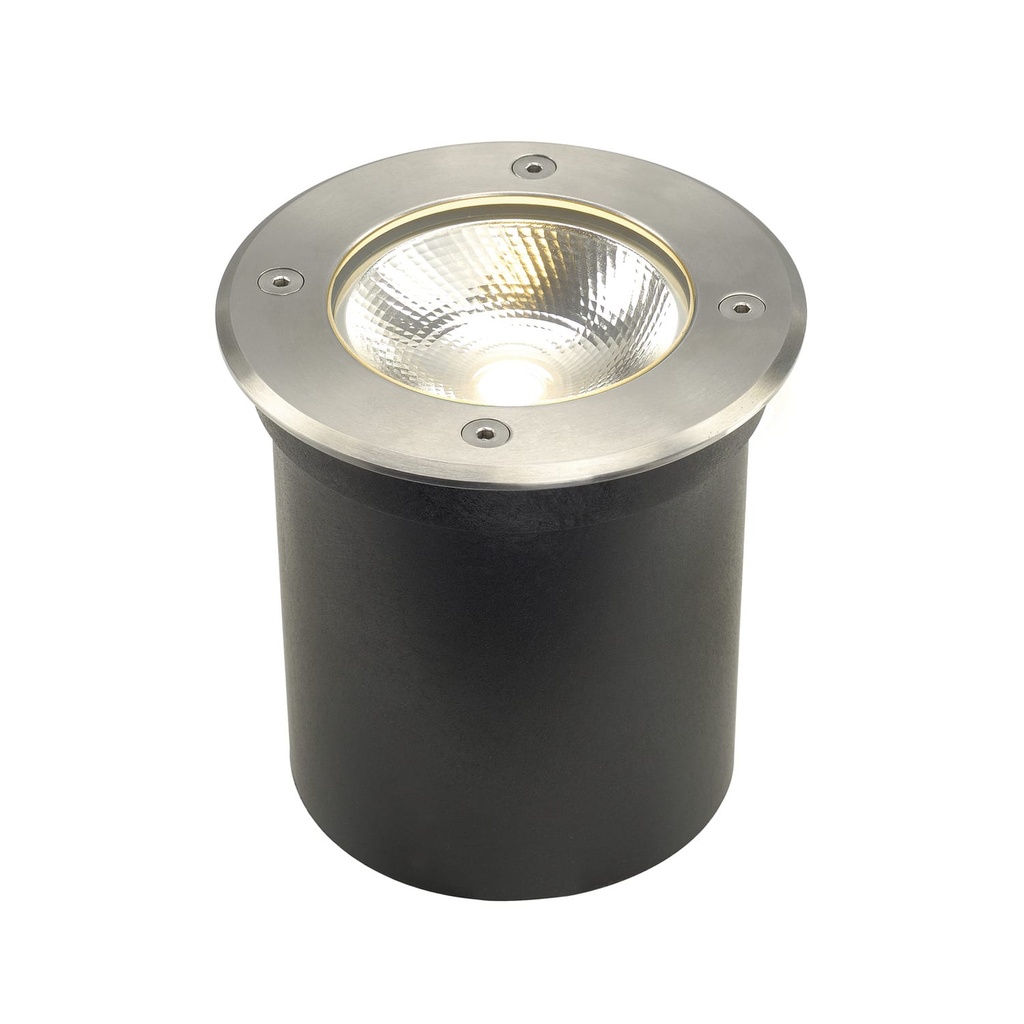

ROCCI, ground spot, round, stainless steel 316, LED

The ROCCI 125 ground-recessed luminaire with round stainless steel cover and transparent glass cover is equipped with a COB LEDs module. Due to the IP67 protection class, the lamp is available with two different cover plates suitable for outdoor use. This is connected directly to 230 V mains voltage. For easy installation, a built-in pot is included in the scope of delivery.

Degree of protection (IP): IP67
Color temperature: 3000 K
Max. system power: 8.6 W
Nom. lifespan L70/B50 at 25 °C: 40000 h
Installation diameter: 113 mm
Lamp type: LED not exchangeable
Housing material: Steel
Housing color: Stainless steel (SS)
Installation height/depth: 123 mm
Impact resistance: IK08
With light source: yes
Lamp holder: Other
Rated voltage: 200...240 V
Dimmable: no
Dimmable DALI-2: no
Voltage type: AC
Quality class material housing: Stainless steel 316 (1.4401)
Dimmable DALI: no
Dimmable 1-10 V: no
Suitable for number of
lamps: 1 Material cover: Glass transparent
Ballast included: no
Adjustable: no
Dimmable phase cut-on: no
Light distribution: Symmetrical
Dimmable DMX: no
Dimmable phase cut-off: no
Beam angle: Free radiating
Controller type: Not necessary
Interchangeable ballast: no
Dimmable 0-10 V: no
Dimmable mains voltage modulation: no
Suitable for lamp power: 8.6 W
Dimmable DSI: no
Dimmable with potentiometer (integrated): no
Outer diameter: 126 mm
Light color: White
Dimmable LineSwitch: no
Dimming manufacturer-specific: no
Driveable: no
Containing product according to 2019/2020/EU: yes
Width: 126 mm
Light distributor: Other
Dimming programmable: no
Dimmable RF: no
Protection class: I
Dimmable Sine Wave Reduction: no
Installation width: 113 mm
Dimmable Touch and Dim: no
Dimmable Zigbee: no
Height/depth: 126 mm
Dimmable with push-button: no
Maximum load: 0.89 kg
Installation length: 113 mm
Nominal current: 700 mA
Nominal luminous flux according to IEC 62722-2-1: 580 lm
Color rendering index: 80-89 (class 1B)
Power factor: 0.54
Constant luminous flux control: no
Color temperature adjustable: No
Luminous flux adjustable: No
Radiation angle adjustable: No
Length: 127 mm
Energy efficiency class of the light source according to EU regulation 2019/2015: F
Specific luminous flux fixture: 67.44 lm/W
Type of wiring: End-termination
Number of poles: 3
Conductor cross-section: 1.5 mm²
Connection method: Other
Electrical connection with connector system: no
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Connectable conductor cross-section: 1.5 mm²
Compatible with Amazon Alexa: no
With IFTTT support: no
Control via Bluetooth: no
Casambi compatible: no
