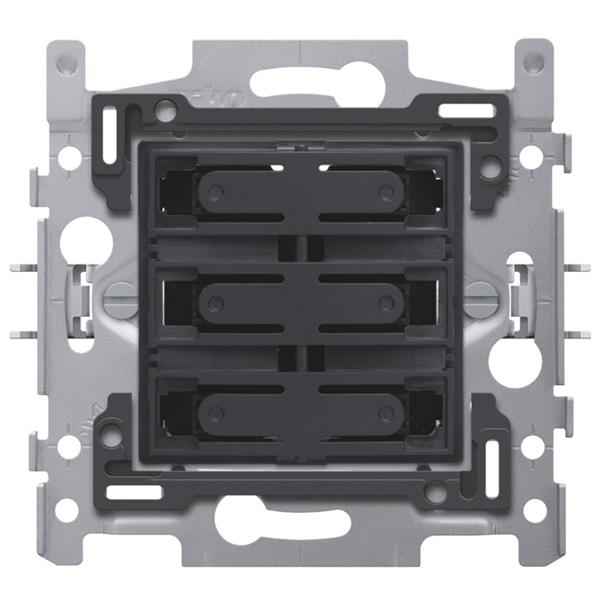

Base six-way potential-free push button 24v, no, claw

SKU: 5290878 | EAN: 5413736338975

Base for 6-fold potential-free push button 24V N.O.

✓ Version: Group of pressure contact

✓ Number of contacts as NC contact: 0

✓ Operating mode: Push/touch contact

✓ Number of contacts as N/O contact: 6

✓ With lighting: no

✓ Composition: Basic element

✓ Number of contacts as changeover contact: 0

✓ Number of rotating contacts: 0

✓ Contactless version: no

✓ Number of rockers: 6

✓ Number of poles: 1

✓ Rated voltage: 24 V

✓ With light source: no

✓ With signal lamp: no

✓ Connection method: Plug-in terminal

✓ Mounting method: Built-in (stucco)

✓ Mounting method: Screw mounting

✓ Material: Plastic

✓ Quality class: Other

✓ Halogen-free: yes

✓ Antibacterial treatment: no

✓ Color: Other

✓ Transparent: no

✓ Text field/description field: no

✓ Print: Without

✓ Suitable for degree of protection (IP): IP41

✓ Impact resistance: IK06

✓ Width of device: 73 mm

✓ Device height: 73 mm

✓ Device depth: 18 mm

✓ Min. depth of the flush-mounting box: 40 mm

✓ Compatible with Apple HomeKit: no

✓ Compatible with Google Assistant: no

✓ Compatible with Amazon Alexa: no

✓ With IFTTT support: no

✓ Product Carbon Footprint (CO2): Sonepar estimate

📄 Download Specification PDF

Einde stock NIKO Cebeo

104.88 € 104.88 €

Add to cart
