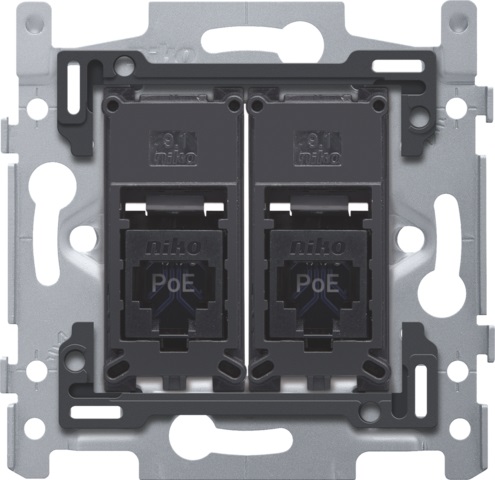

2 RJ45 connections UTP CAT6, PoE++, flat, 60x71, screw

This mechanism with 2 RJ45 connection points UTP Cat. 6, PoE++ ready, in flat design, serves to connect to 2 devices for telephony, Ethernet, IP, PoE or Internet applications. Each of the connection points of the mechanism is connected to the central connection box in star configuration using a cable of the same performance type. The base has internal dimensions of 45 x 45 mm and external dimensions of 60 x 71 mm and is equipped with screw fastening. A PoE adapter is required to route both data and power through the connector. A PoE adapter can be either a PoE injector or a PoE splitter. A finishing set in a color of your choice must be ordered separately. This article is protected by at least one patent (application). For more information on patents, see www.niko.eu/innovation.

📄 Download Specification PDF
