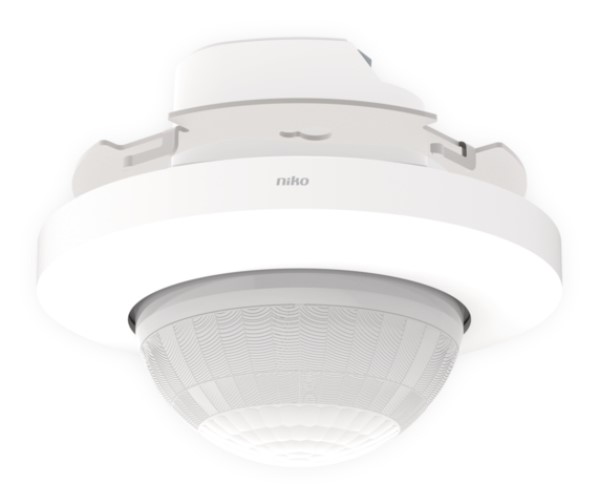

Presence detector P49LR, DALI-2, BMS, 32-37 m, for flush-mounting box, white

Name: Presence detector P49LR, DALI-2, BMS, 32-37 m, for flush-mounting box, white
SKU: 8229579
Price: 186.65 EUR

SKU: 8229579 | EAN: 5413736400405

This presence detector is a DALI-2 BMS detector that can be used in a BMS system. The detector is specially designed for mounting in a standard flush-mounting box (diagonal screw distance of 60 or 79 mm). The detector must be set up with the BMS software. The detector settings can be changed via the Niko detector tool app and the BMS software. Finishing color: white This item is protected by at least one patent (application). For more information on patents, see www.niko.eu/innovation.

✓ KNX bus system: no

✓ Version: Presence detector

✓ Mounting method: Built-in (stucco)

✓ Other bus systems: Other

✓ Detection angle, horizontal: 0...360 °

✓ KNX-RF bus system (radio frequency): no

✓ Bus system radio frequency: yes

✓ LON bus system: no

✓ Powerline bus system: no

✓ Radio frequency bidirectional: yes

✓ Material: Plastic

✓ Quality class: Thermoplastic

✓ Surface protection: Other

✓ Surface finish: Matte

✓ Color: White

✓ RAL number (similar): 9010

✓ Transparent: no

✓ Bus connection included: yes

✓ Input for auxiliary unit: no

✓ Creep protection: no

✓ Operating mode switch: no

✓ Free animal zone: no

✓ Stairwell monitoring: no

✓ Response brightness adjustable: yes

✓ Self-learning function for response clarity: no

✓ Switch-off delay self-learning: no

✓ DALI-2 certificate: yes

✓ Optimal mounting height: 3 m

✓ Max. lateral reach: 30 m

✓ Max. frontal range: 8 m

✓ Diameter reach on floor: 37 m

✓ Number of channels: 1

✓ Min. depth of the flush-mounting box: 35 mm

✓ Suitable for ceiling mounting: yes

✓ Power supply via bus: yes

✓ Background check: no

✓ With acoustic sensor: no

✓ Width: 100 mm

✓ Height: 77.2 mm

✓ Depth: 77.2 mm

✓ Diameter: 100 mm

✓ Installation depth: 35 mm

✓ Installation length: 77.2 mm

✓ Installation diameter: 50 mm

✓ With connection cable: no

✓ Product Carbon Footprint (CO2): Sonepar estimate

📄 Download Specification PDF
