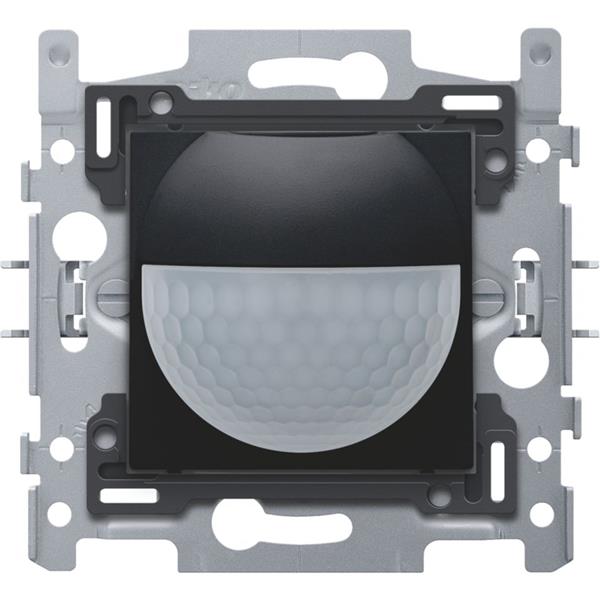

Motion detector 180° flush-mounted (sensor+actuator) with switching contact 10A, black

SKU: 4389291 | EAN: 5413736306493

Motion detector 180° flush-mounted (sensor+actuator) with switching contact 10A, black coated

✓ Version: Motion detector

✓ Max. delay time: 30 min

✓ Max. frontal range: 8 m

✓ Detection angle, horizontal: 180°

✓ Motion Sensor/Presence Detector Technology: Passive Infrared

✓ HVAC control: no

✓ Forced switch-on: yes

✓ Free animal zone: no

✓ Creep protection: no

✓ Connectable to network: no

✓ Scanning angle: 60°

✓ Optimal mounting height: 1 m

✓ Stairwell monitoring: no

✓ Max. lateral reach: 8 m

✓ Max. detection area range: 31 m²

✓ Diameter reach on floor: 8 m

✓ Suitable for wireless: no

✓ Remote control: no

✓ With remote control: no

✓ Sensitivity adjustable: yes

✓ With signal unit: no

✓ Self-learning function for response clarity: no

✓ Suitable for ceiling mounting: no

✓ Dimming function with dimmer insert: no

✓ Mounting method: Built-in (stucco)

✓ Connection method: Screw clamp

✓ Material: Plastic

✓ Halogen-free: yes

✓ Surface protection: Lacquered

✓ Surface finish: Matte

✓ Antibacterial treatment: no

✓ Color: Black

✓ RAL number (similar): 9005

✓ Transparent: yes

✓ Degree of protection (IP): IP40

✓ Voltage type: AC

✓ Frequency: 50...60 Hz

✓ Min. delay time: 60 s

✓ Response brightness: 10...1000 lx

✓ Min. starting current: 10 A

✓ Input for auxiliary unit: no

✓ Width: 45 mm

✓ Height: 45 mm

✓ Depth: 55 mm

✓ Ambient temperature: -5...45 °C

✓ Diameter: 30 mm

✓ Installation width: 31 mm

✓ Installation depth: 40 mm

✓ Installation length: 40 mm

✓ Installation diameter: 31 mm

✓ Compatible with Apple HomeKit: no

✓ Min. depth of the flush-mounting box: 40 mm

✓ Compatible with Google Assistant: no

✓ Compatible with Amazon Alexa: no

✓ With IFTTT support: no

✓ Suitable for wall mounting: yes

✓ Product Carbon Footprint (CO2): Sonepar estimate

📄 Download Specification PDF
