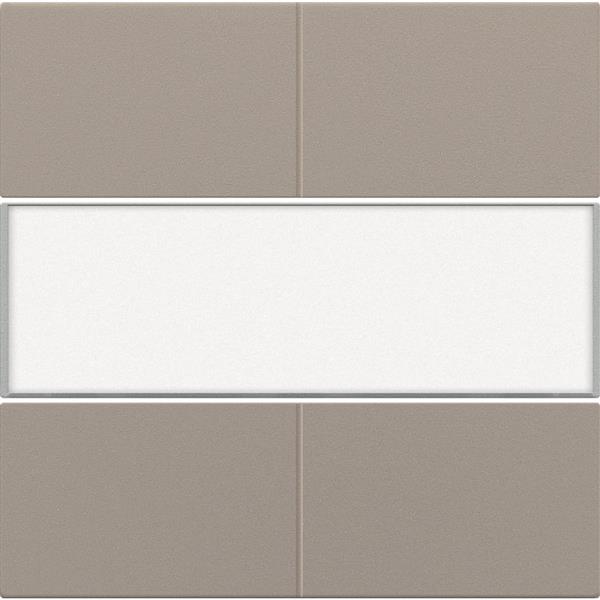

Quadruple potential-free push button button with text field, bronze

Central plate for 4-way potential-free push button 24 V with text field, bronze

Execution: Touch button
Imprint/indication: Without
Use: Switch/dimmer
Color: Bronze
Control window/lighting: no
Scannable symbol / barrier-free: no
Suitable for bus system button connection: no
Mounting method: Other
Material: Plastic
Quality class: Thermoplastic
Halogen-free: yes
Surface protection: Painted
Surface finish: Matte
Antibacterial treatment: no
With text field: yes
With interchangeable lens/ symbol: no
Suitable for protection degree (IP): IP41
Impact resistance: IK06
Width: 45 mm
Height: 45 mm
Depth: 8 mm
